55100-3M-02-A

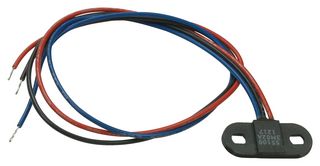

Hall Effect Proximity Sensor, Flange Mount, 55100 Series, Voltage, 3 Wire, 13 mm, 2.7 to 24 VDC
Pilt on illustreeriv. Lugege toote kirjeldust.
TootjaLITTELFUSE
Tootja toote nr55100-3M-02-A
Tellimiskood5052580
Tootevalik55100 Series
Tehniliste andmete leht
4 353 Laos
Vajate rohkem?
Tarneaeg 1–2 tööpäeva
Tellige enne kella 17:00 tavaline saadetis
| Kogus | |
|---|---|
| 1+ | 6,000 € |
| 10+ | 5,760 € |
| 25+ | 5,470 € |
| 50+ | 5,270 € |
| 100+ | 5,100 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
6,00 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaLITTELFUSE
Tootja toote nr55100-3M-02-A
Tellimiskood5052580
Tootevalik55100 Series
Tehniliste andmete leht
Sensing Range Max13mm
Sensor TypeProximity Sensor
Activating Distance Min13mm
Supply Voltage DC Min2.7V
Supply Voltage DC Max24V
Activating Distance Max-
Sensor MountingFlange
Output ConfigurationVoltage
Output Voltage400mV
Sensor TerminalsWire Leads
Operating Temperature Min-40°C
Operating Temperature Max100°C
Product Range55100 Series
Toote ülevaade
55100-3M-02-A is a 55100 miniature flange mounting hall effect sensor. It’s case design enables screw or adhesive mounting and capable of switching up to 24VDC and 20mA. Typical applications include position and limit sensing, RPM measurement, flow metering, commutation of brushless DC motors, angle sensing and magnetic encoders.
- Magnetically operated position sensor
- Digital switch 3 - wire (voltage output)
- Reverse/over voltage protection
- Built in temperature compensation
- Vibration 50g maximum at 50- 2,000Hz, shock 150g maximum at 11ms ½ sine
- High switching speed up to 12KHz
- Long life - up to 20 billion operations
- Operates in static or dynamic magnetic field
- 25.5mm x 11.00mm and only 3.00mm high
- 300mm cable length
Hoiatused
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Tehnilised andmed
Sensing Range Max
13mm
Activating Distance Min
13mm
Supply Voltage DC Max
24V
Sensor Mounting
Flange
Output Voltage
400mV
Operating Temperature Min
-40°C
Product Range
55100 Series
Sensor Type
Proximity Sensor
Supply Voltage DC Min
2.7V
Activating Distance Max
-
Output Configuration
Voltage
Sensor Terminals
Wire Leads
Operating Temperature Max
100°C
Tehnilised dokumendid (4)
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Mexico
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Mexico
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:90318080
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.006
