Vajate rohkem?
Kogus | |
---|---|
5+ | 0,675 € |
50+ | 0,604 € |
100+ | 0,532 € |
500+ | 0,409 € |
1500+ | 0,401 € |
Tooteteave
Toote ülevaade

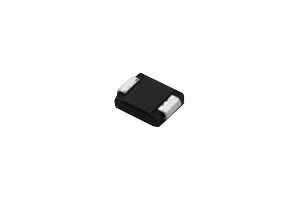

The 1.5SMC series surface-mount Transient Voltage Suppressor Diode designed specifically to protect sensitive electronic equipment from voltage transients induced by lighting and other transient voltage events. It is ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits. It is used for surface mounted applications in order to optimize board space.
- Built-in strain relief
- Glass passivated junction
- Low Inductance
- Excellent clamping capability
- 0.05% Repetition rate (duty cycle)
- <lt/>1.0ps from 0V to V(BR) Minimum fast response time
- <lt/>1μA above 10V IR
- Available in unidirectional and bidirectional
- -65 to 150°C Operating temperature range
Rakendused
Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Industrial
Hoiatused
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Tehnilised andmed
TRANSZORB 1.5SMC
342V
DO-214AB (SMC)
380V
1.5kW
Surface Mount
No SVHC (17-Dec-2014)
Bidirectional
548V
2Pins
420V
150°C
-
Tehnilised dokumendid (2)
Alternatiivid tootele 1.5SMC400CA
Leiti 2 toodet
Seadusandlus ja keskkonnateave
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:China
Riik, kus toimus viimane oluline tootmisprotsess
RoHS
RoHS
Toote vastavussertifikaat
