EMT 1900
Digital Panel Meter, 3 Digits, Temperature, Multi Range
Vajate rohkem?
| Kogus | |
|---|---|
| 1+ | 44,220 € |
| 5+ | 43,340 € |
| 10+ | 42,450 € |
Tooteteave
Toote ülevaade

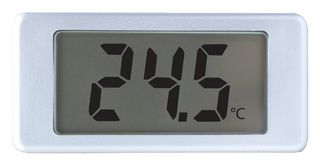

The EMT 1900 is a LCD Digital Panel Meter with 4 measurement ranges. The module can measure ambient temperature via a built-in sensor and outside temperature via an external sensor (not supplied). It uses NTC temperature sensors to ensure high accuracy over a wide temperature range. The module is fitted to the panel by locating its screw threaded stud through the hole, fitting the washer and tightening the nut provided. A rubber seal is included, providing splash-proof protection for the unit when fitted to the meter during installation.
- Single hole mounting thermometer
- 12.5mm Digit height
- Compatible with 10k NTC sensors
- Splash-proof protection
- -10 to 50°C Operating temperature range
Rakendused
Industrial, Automation & Process Control
Tehnilised andmed
3
-10°C to +50°C, +14°F to +122°F, -20°C to +122°C, -4°F to +428°F
21mm
4V
-10°C
-
Temperature
12.5mm
44mm
28VDC
50°C
No SVHC (07-Nov-2024)
Tehnilised dokumendid (1)
Seadusandlus ja keskkonnateave
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Great Britain
Riik, kus toimus viimane oluline tootmisprotsess
RoHS
RoHS
Toote vastavussertifikaat
