0047002

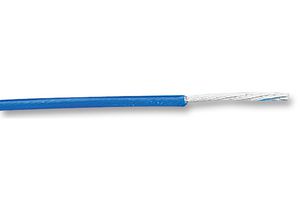

Wire, Stranded, Hook Up, Hi Temp, Silicone, Blue, 24 AWG, 0.25 mm², 328 ft
Pilt on illustreeriv. Lugege toote kirjeldust.
TootjaLAPP
Tootja toote nr0047002
Tellimiskood1285909
TootevalikOLFLEX HEAT 180 SiF Series
Tehniliste andmete leht
188 Laos
Vajate rohkem?
Tarneaeg 1–2 tööpäeva
Tellige enne kella 17:00 tavaline saadetis
| Kogus | |
|---|---|
| 1+ | 33,600 € |
| 5+ | 32,930 € |
| 10+ | 32,260 € |
Hind:Reel of 1
Minimaalne: 1
Mitmekordne: 1
33,60 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaLAPP
Tootja toote nr0047002
Tellimiskood1285909
TootevalikOLFLEX HEAT 180 SiF Series
Tehniliste andmete leht
Jacket MaterialSilicone
Jacket ColourBlue
Wire Gauge24AWG
Conductor Area CSA0.25mm²
Reel Length (Imperial)328ft
Reel Length (Metric)100m
Operating Temperature Max180°C
No. of Max Strands x Strand Size-
Voltage Rating300V
Conductor MaterialTinned Copper
External Diameter1.9mm
Approval Specification-
Product RangeOLFLEX HEAT 180 SiF Series
SVHCNo SVHC (07-Nov-2024)
Toote ülevaade
0047002 is a ÖLFLEX® HEAT 180 SiF versatile single core cable with extended temperature range. It is a fine wire silicone single core for use in machines, plant construction and toolbuilding for temperatures up to +180°C. Typical fields of application are control cabinet manufacturing, appliances and apparatus engineering, electric motor industry, sauna/solarium construction, thermal and heating elements, lighting technology, ventilator engineering, air-conditioning technology, furnace construction, polymer processing, generator and transformer manufacturing.
- Flexible fine-wire copper conductor
- 0.25mm² conductor cross-section, 1.9mm outer diameter, blue core colour
- Corrosiveness of combustion gases according to IEC 60754-2 (degree of acidity)
- Flame-retardant according IEC 60332-1-2
- Resistant to a multitude of oils, alcohols, vegetable and animal fats and chemical substances
- 2000V test voltage, U0/U: 300/500V nominal voltage
- Fixed installation: 6 x core diameter/One bend at end of core: 3 x cable diameter min bending radius
- Temperature range from -50 to +180°C
Tehnilised andmed
Jacket Material
Silicone
Wire Gauge
24AWG
Reel Length (Imperial)
328ft
Operating Temperature Max
180°C
Voltage Rating
300V
External Diameter
1.9mm
Product Range
OLFLEX HEAT 180 SiF Series
Jacket Colour
Blue
Conductor Area CSA
0.25mm²
Reel Length (Metric)
100m
No. of Max Strands x Strand Size
-
Conductor Material
Tinned Copper
Approval Specification
-
SVHC
No SVHC (07-Nov-2024)
Tehnilised dokumendid (2)
Seotud tooted
Leiti 7 toodet
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Italy
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Italy
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:85444993
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Väga ohtlik aine:No SVHC (07-Nov-2024)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.60872
