WK-602-D
Thermocouple Wire, IEC, PFA Insulated, Flat Pair, Type K, 7 x 0.2mm, 25 m
Pilt on illustreeriv. Lugege toote kirjeldust.
1 Laos
Vajate rohkem?
Tarneaeg 1–2 tööpäeva
Tellige enne kella 17:00 tavaline saadetis
| Kogus | |
|---|---|
| 1+ | 114,850 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
114,85 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaLABFACILITY
Tootja toote nrWK-602-D
Tellimiskood4073506
Tehniliste andmete leht
Thermocouple Wire TypeK
Length - Imperial82ft
Length - Metric25m
No. of Max Strands x Strand Size7 x 0.2mm
Wire Gauge-
Conductor Area CSA0.219mm²
Conductor TypeStranded
Colour Code StandardIEC
InsulationPFA (Perfluoroalkoxy)
Operating Temperature Min-70°C
Operating Temperature Max250°C
Product Range-
SVHCNo SVHC (21-Jan-2025)
Toote ülevaade

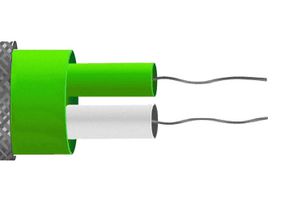

WK-602-D is a type K PFA 7/0.2mm class 1 insulated flat pair with stainless steel overbraid thermocouple cable / wire (IEC). PFA PTFE has a good mechanical strength and flexibility, resistant to oils, acids and other adverse fluids, gasses, steam and pressure. Stainless steel overbraid for added protection and mechanical strength.
- PFA PTFE insulated flat pair with stainless steel overbraid
- Thermocouple type K (nickel chromium/nickel aluminium)
- 25m length, 2 cores
- Cores laid flat with overall jacket + stainless steel overbraid
- 7/0.2mm conductors wire size, tolerance class 1
- Minimum temperature is -70°C and maximum temperature is +250°C
- Standards met (colour code) IEC 60584:3, standards met (wire tolerance) IEC 60584:1
- Green overall jacket, white core insulation colour (-neg), green core insulation colour (+pos)
Tehnilised andmed
Thermocouple Wire Type
K
Length - Metric
25m
Wire Gauge
-
Conductor Type
Stranded
Insulation
PFA (Perfluoroalkoxy)
Operating Temperature Max
250°C
SVHC
No SVHC (21-Jan-2025)
Length - Imperial
82ft
No. of Max Strands x Strand Size
7 x 0.2mm
Conductor Area CSA
0.219mm²
Colour Code Standard
IEC
Operating Temperature Min
-70°C
Product Range
-
Tehnilised dokumendid (4)
Seotud tooted
Leiti 2 toodet
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Great Britain
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Great Britain
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:85369010
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Väga ohtlik aine:No SVHC (21-Jan-2025)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.7
