53220A PROMO

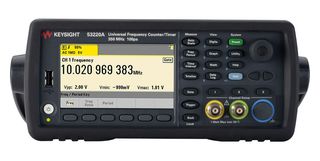

53220A PROMO is a 53200A series 350MHz universal frequency counter/timer. It is a two-channel frequency counter with the ability to make frequency, frequency ratio, time interval and pulse width measurements. The 53200 series of RF and universal frequency counter/timer expands on this expectation to provides user with the most information, connectivity and new measurement capabilities, while building on the speed and accuracy you’ve depended on with Keysight Technologies, Inc. time and frequency measurement expertise. It offers new built-in analysis and graphing capabilities to maximize the insight and information users receive.

• 12 digits/second resolution, 100 psec time interval resolution
• LXI-C/LAN, USB, GPIB
• Built-in math analysis and colour, graphical display (trend and histogram)
• 15 digits maximum display resolution
• Bench dimension is 261.1mm W x 103.8mm H x 303.2mm D
• Operating temperature range from 0°C to +55°C
• Voltage is 100V to 240V ± 10%, 50-60Hz ±5%100V to 120V, 400Hz ±10%
• 100µs to 1000s (10µs) gate time (step size)
• 45minutes warm-up time, FAT, FAT32 USB flash drive
• 4.3" colour TFT WQVGA (480 x 272), LED backlight display

Sisukord

53200A series 350MHz universal frequency counter/timer, IEC power cord, USB cable.

Märkused

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
