53210A

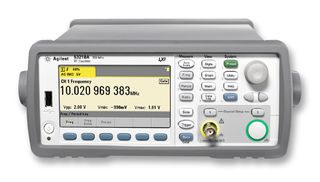

Frequency Counter, 10Hz to 350MHz, 10 Digits, 14 mVrms, 53200A Series
Pilt on illustreeriv. Lugege toote kirjeldust.
Saadaval tellimiseks
Teavitage mind, kui toode on uuesti laos
| Kogus | |
|---|---|
| 1+ | 3 145,000 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
3 145,00 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaKEYSIGHT TECHNOLOGIES
Tootja toote nr53210A
Tellimiskood1843577
Tootevalik53200A Series
Bandwidth350MHz
Counter Measuring FunctionsFrequency
Test Frequency Range10Hz to 350MHz
No. of Digits / Alpha10
Sensitivity14mVrms
External Height103.8mm
External Width261.1mm
External Depth303.2mm
Product Range53200A Series
Plug TypeEU, UK
SVHCNo SVHC (17-Jan-2023)
Toote ülevaade
53210A is a single-channel, 350MHz RF frequency counter. It is optimized to provide fast, precise frequency measurements with a simplified user interface.
- Single-channel, RF frequency counter
- One 350MHz input channel, plus optional second channel (6GHz or 15GHz)
- 10 digits/second resolution
- 1M reading memory and USB flash storage
- Built-in math analysis and colour, graphical display (trend and histogram)
- LXI-C/LAN, USB, GPIB
- Optional battery for unstable AC power or timebase accuracy
- 4.3" colour TFT WQVGA (480 x 272), LED backlight display
- Bench dimension is 261.1mm W x 103.8mm H x 303.2mm D
- Bench dimension is 261.1 mm W x 103.8 mm H x 303.2 mm D
Sisukord
RF frequency counter, Power line cord, 2m USB 2.0 cable.
Märkused
In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
Tehnilised andmed
Bandwidth
350MHz
Test Frequency Range
10Hz to 350MHz
Sensitivity
14mVrms
External Width
261.1mm
Product Range
53200A Series
SVHC
No SVHC (17-Jan-2023)
Counter Measuring Functions
Frequency
No. of Digits / Alpha
10
External Height
103.8mm
External Depth
303.2mm
Plug Type
EU, UK
Tehnilised dokumendid (2)
Seotud tooted
Leiti 8 toodet
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Malaysia
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Malaysia
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:90308900
US ECCN:3A992.a
EU ECCN:NLR
RoHS-ile vastav:Y-Ex
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Väga ohtlik aine:No SVHC (17-Jan-2023)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):4
