MID200-12A4

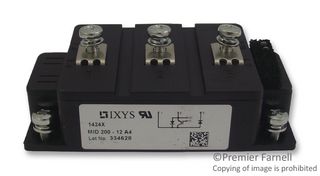

IGBT Module, Single, 270 A, 2.2 V, 1.13 mW, 150 °C, Module
Pilt on illustreeriv. Lugege toote kirjeldust.
Ei toodeta enam
Tooteteave
TootjaIXYS SEMICONDUCTOR
Tootja toote nrMID200-12A4
Tellimiskood2429722
Tehniliste andmete leht
DC Collector Current270A
IGBT ConfigurationSingle
Collector Emitter Saturation Voltage Vce(on)2.2V
Continuous Collector Current270A
Collector Emitter Saturation Voltage2.2V
Power Dissipation Pd1.13mW
Power Dissipation1.13mW
Collector Emitter Voltage V(br)ceo1.2kV
Operating Temperature Max150°C
Junction Temperature Tj Max150°C
No. of Pins7Pins
Transistor Case StyleModule
IGBT TerminationStud
Collector Emitter Voltage Max1.2kV
IGBT TechnologyNPT IGBT [Ultrafast]
Transistor MountingPanel
Product Range-
SVHCNo SVHC (12-Jan-2017)
Toote ülevaade
The MID200-12A4 is an IGBT Module features low saturation voltage, reduced protection circuits, space and weight saving.
- Short-circuit SOA capability
- Square RBSOA
- NPT IGBT technology
- Low switching losses
- Switching frequency up to 30kHz
- Square RBSOA, no latch up
- High short-circuit capability
- Positive temperature coefficient for easy paralleling
- MOS input, voltage controlled
- Ultrafast free-wheeling diodes
- Package with DCB ceramic base plate
- 4800V Isolation voltage
Rakendused
Motor Drive & Control, Robotics, Maintenance & Repair, Power Management
Hoiatused
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Tehnilised andmed
DC Collector Current
270A
Collector Emitter Saturation Voltage Vce(on)
2.2V
Collector Emitter Saturation Voltage
2.2V
Power Dissipation
1.13mW
Operating Temperature Max
150°C
No. of Pins
7Pins
IGBT Termination
Stud
IGBT Technology
NPT IGBT [Ultrafast]
Product Range
-
IGBT Configuration
Single
Continuous Collector Current
270A
Power Dissipation Pd
1.13mW
Collector Emitter Voltage V(br)ceo
1.2kV
Junction Temperature Tj Max
150°C
Transistor Case Style
Module
Collector Emitter Voltage Max
1.2kV
Transistor Mounting
Panel
SVHC
No SVHC (12-Jan-2017)
