TLD609812BEVALTOBO1
Evaluation Board, TLD6098-1EP, 8V to 27V in, 50V out, 1A, Boost (Step Up), Analogue, Digital

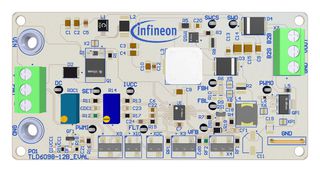

Pilt on illustreeriv. Lugege toote kirjeldust.
1 Laos
Vajate rohkem?
Tarneaeg 1–2 tööpäeva
Tellige enne kella 17:00 tavaline saadetis
| Kogus | |
|---|---|
| 1+ | 125,300 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
125,30 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaINFINEON
Tootja toote nrTLD609812BEVALTOBO1
Tellimiskood4410898
Teise nimegaSP005902850
Device TopologyBoost
No. of Outputs1Outputs
Output Current1A
Output Voltage48.6V
Input Voltage Min8V
Input Voltage Max27V
Core ChipTLD6098-1EP
Dimming Control TypePWM
Kit ContentsEvaluation Board TLD6098-1EP
Product Range-
SVHCNo SVHC (21-Jan-2025)
Toote ülevaade
TLD609812BEVALTOBO1 is a PCB board designed to supply high-power LED with TLD6098-1EP in boost topologies. It serves boost to ground and boost to battery configurations, depending on the load connection at the terminal X7. In both configurations, the board can deliver up to 25W. Auxiliary circuits are present and enabled to protect the DC-DC and the load during the short to ground failure. Suitable for automotive LED lighting (LED driver) and voltage pre-regulator applications.
- Built-in diagnosis and protection features
- Pulse width modulator to implement a dimming function with reduced colour shifting
- Coded faults to easily detect the root cause of load failures
- Voltage loop availability to implement constant output voltage power supply
- Boost to ground and boost to battery available on the same board
- Easy to set-up
Tehnilised andmed
Device Topology
Boost
Output Current
1A
Input Voltage Min
8V
Core Chip
TLD6098-1EP
Kit Contents
Evaluation Board TLD6098-1EP
SVHC
No SVHC (21-Jan-2025)
No. of Outputs
1Outputs
Output Voltage
48.6V
Input Voltage Max
27V
Dimming Control Type
PWM
Product Range
-
Tehnilised dokumendid (1)
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Germany
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Germany
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:84733020
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Vajab kinnitamist
Väga ohtlik aine:No SVHC (21-Jan-2025)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.18
