FF150R12MS4GBOSA1
IGBT Module, Dual, 225 A, 3.2 V, 1.25 kW, 125 °C, Module

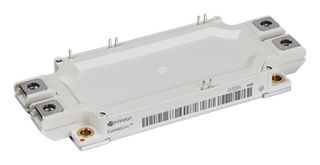

Pilt on illustreeriv. Lugege toote kirjeldust.
TootjaINFINEON
Tootja toote nrFF150R12MS4GBOSA1
Tellimiskood2839507
TootevalikEconoDUAL 3
Teise nimegaFF150R12MS4G, SP000091944
Tehniliste andmete leht
Ei ladustata enam
Tooteteave
TootjaINFINEON
Tootja toote nrFF150R12MS4GBOSA1
Tellimiskood2839507
TootevalikEconoDUAL 3
Teise nimegaFF150R12MS4G, SP000091944
Tehniliste andmete leht
IGBT ConfigurationDual
Transistor PolarityN Channel
DC Collector Current225A
Continuous Collector Current225A
Collector Emitter Saturation Voltage3.2V
Collector Emitter Saturation Voltage Vce(on)3.2V
Power Dissipation Pd1.25kW
Power Dissipation1.25kW
Junction Temperature Tj Max125°C
Operating Temperature Max125°C
Collector Emitter Voltage V(br)ceo1.2kV
Transistor Case StyleModule
IGBT TerminationPress Fit
Collector Emitter Voltage Max1.2kV
IGBT TechnologyIGBT 2 Fast
Transistor MountingPanel
Product RangeEconoDUAL 3
SVHCNo SVHC (27-Jun-2018)
Toote ülevaade
Hoiatused
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Tehnilised andmed
IGBT Configuration
Dual
DC Collector Current
225A
Collector Emitter Saturation Voltage
3.2V
Power Dissipation Pd
1.25kW
Junction Temperature Tj Max
125°C
Collector Emitter Voltage V(br)ceo
1.2kV
IGBT Termination
Press Fit
IGBT Technology
IGBT 2 Fast
Product Range
EconoDUAL 3
Transistor Polarity
N Channel
Continuous Collector Current
225A
Collector Emitter Saturation Voltage Vce(on)
3.2V
Power Dissipation
1.25kW
Operating Temperature Max
125°C
Transistor Case Style
Module
Collector Emitter Voltage Max
1.2kV
Transistor Mounting
Panel
SVHC
No SVHC (27-Jun-2018)
Tehnilised dokumendid (1)
Seotud tooted
Leiti 1 toodet
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Hungary
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Hungary
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:85415000
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Väga ohtlik aine:No SVHC (27-Jun-2018)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.0001
