DEMOBCR60260VICTRLTOBO1
Evaluation Board, BCR602 LED Controller, DC/DC, 60V, 200mA, Linear, General Lighting

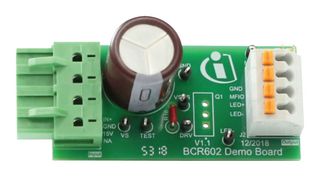

Pilt on illustreeriv. Lugege toote kirjeldust.
4 Laos
Vajate rohkem?
Tarneaeg 1–2 tööpäeva
Tellige enne kella 17:00 tavaline saadetis
| Kogus | |
|---|---|
| 1+ | 15,960 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
15,96 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaINFINEON
Tootja toote nrDEMOBCR60260VICTRLTOBO1
Tellimiskood3021570
Teise nimegaSP002798054
Device TopologyLinear
No. of Outputs1Outputs
Output Current200mA
Output Voltage60V
Input Voltage Min8V
Input Voltage Max60V
Core ChipBCR602
Dimming Control TypeAnalogue, PWM
Kit ContentsDemo Board BCR602
Product Range-
SVHCNo SVHC (21-Jan-2025)
Toote ülevaade
200mA linear LED controller demonstration board. This demo board introduces BCR602, a 60V linear DC/DC LED controller IC for general lighting applications. The BCR602 features a linear current regulation, various protection features and flexible dimming options. This board is intended for the design evaluation of cost-efficient, highly reliable, dimmable LED engines/modules with BCR602. The board is configured to have an output current of 200mA.
- Supply voltage from 8V to 60V
- AC frequency line ripple suppression
- Board configurable up to 1.5A LED current control
- Board suitable for assembly with transistor packages of types SOT-223, DPAK, TO-220
- Flexible input capacity selectable as ceramic SMD device or as electrolytic capacitor
- Over temperature protection function vs junction temperature
- Hot plug protection to minimize LED inrush current
- Cost efficient design-in and various protection features for LEDs
- No ripple on LED for flicker free light
- Various probe connection pins for easy system analysis
Tehnilised andmed
Device Topology
Linear
Output Current
200mA
Input Voltage Min
8V
Core Chip
BCR602
Kit Contents
Demo Board BCR602
SVHC
No SVHC (21-Jan-2025)
No. of Outputs
1Outputs
Output Voltage
60V
Input Voltage Max
60V
Dimming Control Type
Analogue, PWM
Product Range
-
Tehnilised dokumendid (1)
Seotud tooted
Leiti 1 toodet
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Germany
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Germany
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:84733020
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Väga ohtlik aine:No SVHC (21-Jan-2025)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.24
