103SR13A-1

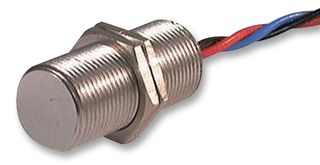

The 103SR13A-1 is an unipolar hall-effect digital Position Sensor with 15/32-32 UNS-2A cylindrical aluminium threaded housing and 152mm (6-inch) 24-gauge stranded lead wires, irradiated polyethylene insulated termination. Meet NEMA 3, 3R, 3S, 4, 4X (stainless-steel housing), 12 and 13 requirements. They respond to the magnetic field from permanent magnets or electromagnets. This rugged non-contact sensing product use versatile, reliable Hall-effect sensor ICs that are operated by a magnetic field and are designed to respond to alternating North and South Poles or to South Pole only. The hall-effect position sensor includes latching and linear magnetic types. The standard open-collector sinking output (digital devices) or push-pull output (linear device) of the hall-effect position sensor can be easily interfaced with common electronic circuitry such as microprocessors, integrated logic, discrete transistors and SCRs with compatible voltage specifications.

• Solid state reliability
• Adjustable mounting
• -40 to 100°C operating temperature
• 0.4VDC maximum (operated) output voltage
• 10mA (maximum at 25°C) supply current
• 20mA maximum output current
• 20µA leakage current
• Static sensitive

Rakendused

Industrial, Logistics, Medical, Robotics, Motor Drive & Control

Hoiatused

ESD sensitive device, take proper precaution while handling the device.
