FH12S-40S-0.5SH(55)

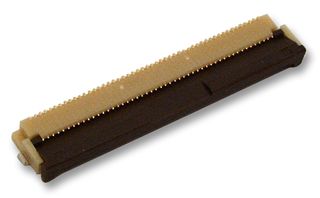

The FH12S-40S-0.5SH(55) is a 40-position 1-row 0.5mm female FPC/FFC Receptacle with beige polyamide and dark brown PPS insulator, gold plated phosphor bronze contacts and tin plated metal fitting. The FH12 series socket/connector has horizontal FPC/FFC insertion direction, front strengthen flip-lock actuator, bottom contact orientation and SMT horizontal mounting type. The one-touch rotating ZIF mechanism is easier to operate and works with a light force. A clear tactile click is delivered upon the successful completion of the mating process. The FH12's one-touch ZIF system requires less space than a slide locking connector and can be mounted in the centre of the PCB. The FH12S version in 30, 40, 45, 50 and 53 pin counts are offered with a reinforced actuator that provides an extra measure of security against actuator breakage.

• Rotating one-touch ZIF mechanism
• Clear tactile click
• Supports high density mounting
• Reinforced actuator
• 0.5A Rated current
• 50VAC/DC Rated voltage
• 50mΩ Maximum contact resistance
• 500MΩ Minimum insulation resistance
• 150VAC for one minute Withstanding voltage
• 20 Mating/unmating cycles

Rakendused

Industrial
