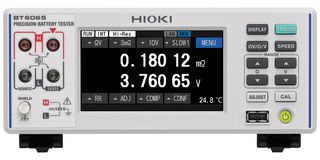

BT6065

BT6065 is a precision battery tester. It is designed for OCV/AC-IR testing of high-capacity EV battery cells with low internal resistance. The extremely high resolution enables these models to perform advanced cell-grading. This tester powerfully facilitates the creation of reliable and efficient OCV/IR testing systems with its innovative features and capability of high-speed testing.

• Shorter testing times while maintaining exceptional reproducibility
• Supports seamless setup of inspection systems
• High durability and long-term, stable test system operations
• 6-1/2 digits voltage display
• 10µV maximum DCV resolution
• 0.01µohm maximum AC-IR resolution
• Operating temperature range from 0 to 40°C
• EN61010 safety, EN61326 class A safety compliance
• 100V to 240VAC rated supply voltage
• Dimension is 215mm W × 88mm H × 313mm D

Sisukord

Precision battery tester, Power cord × 1, Startup guide × 1, Operating precautions × 1.
