PHAT-RV
REMOTE VEHICLE MODULE, RASPBERRY PI
Pilt on illustreeriv. Lugege toote kirjeldust.
16 Laos
Vajate rohkem?
Tarneaeg 1–2 tööpäeva
Tellige enne kella 17:00 tavaline saadetis
Saadaval, kuni laos jätkub
| Kogus | |
|---|---|
| 1+ | 36,800 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
36,80 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaDESIGNER SYSTEMS
Tootja toote nrPHAT-RV
Tellimiskood3287161
Tehniliste andmete leht
Add-On-Card & Module Type-
Silicon Manufacturer-
For Use WithRaspberry Pi
Core Architecture-
Core Sub-Architecture-
Silicon Core Number-
Silicon Family Name-
Kit ContentsPHAT-RV Remote Vehicle Module
SVHCNo SVHC (10-Jun-2022)
Toote ülevaade

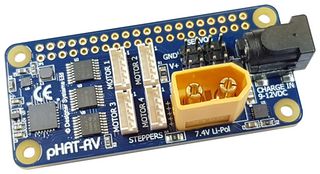

The pHAT-RV is a fully featured remote vehicle driver solution with four [4] unipolar stepper motor drivers, four [4] servo motor drivers and Lithium battery power control features. Specifically designed for the Raspberry-Pi Zero (other Raspberry-Pi boards fully supported) the pHAT-RV features Lithium battery power regulation, a battery charging system and high speed I2C communication for easy project integration.
- Raspberry Pi Zero standard form factor for simple integration into any Raspberry Pi project
- Deans XT60 7.4V Lithium-Ion battery input (2000mA/h min capacity) with on-board charge controller
- On-board 5V 1A regulator to power the Raspberry-Pi Zero board
- Four (4) unipolar stepper motor driver outputs
- Four (4) analogue servo motor driver outputs
- Sixteen (16) level speed control for each servo motor
- Two hundred and fifty five (255) level step speed control for each stepper motor
- 16bit (1 to 65535) number of steps control for each stepper motor
- I2C address jumpers allow up to 4 RV modules to be used together to provide 16 stepper/servo motors
- Movement complete and soft-start complete status for each servo
Tehnilised andmed
Add-On-Card & Module Type
-
For Use With
Raspberry Pi
Core Sub-Architecture
-
Silicon Family Name
-
SVHC
No SVHC (10-Jun-2022)
Silicon Manufacturer
-
Core Architecture
-
Silicon Core Number
-
Kit Contents
PHAT-RV Remote Vehicle Module
Tehnilised dokumendid (1)
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Great Britain
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Great Britain
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:85437090
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Vajab kinnitamist
Väga ohtlik aine:No SVHC (10-Jun-2022)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.01693
