BT-2723
Plastic Enclosure, Multipurpose, Polycarbonate, 54.99 mm, 89.99 mm, 115.01 mm, IP65
Pilt on illustreeriv. Lugege toote kirjeldust.
Saadaval tellimiseks
Tootja standardne tarneaeg: 9 nädal(at)
Teavitage mind, kui toode on uuesti laos
| Kogus | |
|---|---|
| 1+ | 15,520 € |
| 5+ | 14,250 € |
| 10+ | 12,980 € |
| 20+ | 12,720 € |
| 50+ | 12,460 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
15,52 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaBUD INDUSTRIES
Tootja toote nrBT-2723
Tellimiskood2762439
Enclosure TypeMultipurpose
Enclosure MaterialPolycarbonate
External Height - Metric54.99mm
External Width - Metric89.99mm
External Depth - Metric115.01mm
IP RatingIP65
Body ColourBlue
NEMA RatingNEMA 1, 2, 4, 4X, 12, 13
External Height - Imperial2.165"
External Width - Imperial3.54"
External Depth - Imperial4.53"
Product Range-
SVHCNo SVHC (07-Nov-2024)
Toote ülevaade

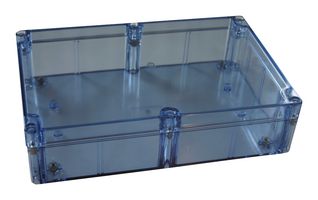

BT-2723 is a clear plastic enclosure.
- External dimension is 115.06x89.92x55.12mm, internal dimension is 105.66x80.77x49.02mm (LxWxD)
- Transparent blue polycarbonate design reduces the need to remove cover to verify NEMA protection
- Near complete transparency to blue, white, and near white displays
- Plastic enclosure designed to IEC52/IP65 and NEMA 1, 2, 4, 4x, 12, and 13 specifications
- UL listed to UL508-4x specifications (file# E194432)
- Lap joint design combined with silicon gasket ensures protection against dust & splashing water
- Internal guide slots for mounting PCB assemblies vertically on some models
- Internal bosses allow mounting of PCBs horizontally
- Cover screws are M-4 stainless steel, non-magnetic and fasten into threaded brass inserts
- UV stabilized polycarbonate with UL94-V2 flammability rating
Tehnilised andmed
Enclosure Type
Multipurpose
External Height - Metric
54.99mm
External Depth - Metric
115.01mm
Body Colour
Blue
External Height - Imperial
2.165"
External Depth - Imperial
4.53"
SVHC
No SVHC (07-Nov-2024)
Enclosure Material
Polycarbonate
External Width - Metric
89.99mm
IP Rating
IP65
NEMA Rating
NEMA 1, 2, 4, 4X, 12, 13
External Width - Imperial
3.54"
Product Range
-
Tehnilised dokumendid (4)
Seotud tooted
Leiti 5 toodet
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:United States
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:United States
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:39231090
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Väga ohtlik aine:No SVHC (07-Nov-2024)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.18144
