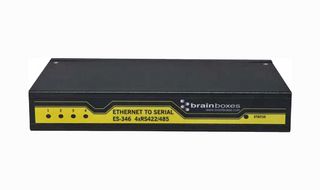

ES-346
Device Server, Ethernet to Serial, RS-422/485
Pilt on illustreeriv. Lugege toote kirjeldust.
Saadaval tellimiseks
Tootja standardne tarneaeg: 9 nädal(at)
Teavitage mind, kui toode on uuesti laos
| Kogus | |
|---|---|
| 1+ | 573,220 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
573,22 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaBRAINBOXES
Tootja toote nrES-346
Tellimiskood3604484
Tehniliste andmete leht
No. of Ethernet Ports1Ports
No. of Serial Communication Ports4 Port
Network Speeds10Mbps, 100Mbps
Port TypesRJ45 x 1, DB9 Male x 4
Toote ülevaade
ES-346 is a 4 port RS422/485 Ethernet to serial adapter. Ethernet to Serial device server providing access to four RS422/485 serial ports. Data transfer rates up to 1,000,000 baud rates, coupled with 1Mbit/s line drivers deliver uncompromising performance. Our ES range provides simple instant networked serial ports. RS485 - 1 twisted pair- half duplex configuration with autogating provides trouble free data transmission due to automatic control of data direction. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser.
- 10/100Base TX Ethernet port
- User friendly interface, simple to use, powerful in operation
- Web configuration and RFC2217 compliant interface
- IP-30 rated enclosure, LED status indication, no software required
- Serial port tunnelling (individually configurable) allows serial cable replacement over any distance
- Power supply included with screw fix connector (5-30VDC)
- Simple operation for each and every operating system
- Lifetime warranty
- Operating temperature range from 0 to 55°C
- 1.45W typical power consumption
Tehnilised andmed
No. of Ethernet Ports
1Ports
Network Speeds
10Mbps, 100Mbps
No. of Serial Communication Ports
4 Port
Port Types
RJ45 x 1, DB9 Male x 4
Tehnilised dokumendid (3)
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Great Britain
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Great Britain
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:85176200
US ECCN:5A991.b
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):1
