BTHQ21603V-STF-LV-LED YG WC

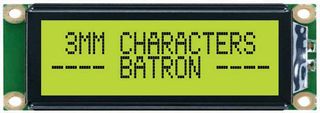

Alphanumeric LCD, 16 x 2, Black on Yellow / Green, 5V, Parallel, English, Japanese, Transflective
Pilt on illustreeriv. Lugege toote kirjeldust.
TootjaBATRON
Tootja toote nrBTHQ21603V-STF-LV-LED YG WC
Tellimiskood9448756
TootevalikBTHQ21603V
Tehniliste andmete leht
Ei toodeta enam
Tooteteave
TootjaBATRON
Tootja toote nrBTHQ21603V-STF-LV-LED YG WC
Tellimiskood9448756
TootevalikBTHQ21603V
Tehniliste andmete leht
Character Count x Line16 x 2
Display AppearanceBlack on Yellow / Green
Logic Voltage5V
Interface TypeParallel
Font SetEnglish, Japanese
Display ModeTransflective
Character Size3.15mm
LCD Display TypeSTN
Module Size53mm x 20mm
Operating Temperature Min0°C
Operating Temperature Max50°C
Display ConstructionCOB
Backlighting ColourYellow / Green
Product RangeBTHQ21603V
Alternatiivid tootele BTHQ21603V-STF-LV-LED YG WC
Leiti 2 toodet
Toote ülevaade
The BTHQ21603V-STF-LV-LED YG WC is a 16 characters (5 x 8 dots) 2 lines FSTN positive black and white Transflective Dot Matrix LCD Module with 1/16 duty, 1/5 bias driving scheme. It has a green LED01 back light.
- 16-pin ZIF SMD FULLCONN connector (CON-16X1-35)
- 6 O'clock Direction viewing angle
Rakendused
Consumer Electronics
Tehnilised andmed
Character Count x Line
16 x 2
Logic Voltage
5V
Font Set
English, Japanese
Character Size
3.15mm
Module Size
53mm x 20mm
Operating Temperature Max
50°C
Backlighting Colour
Yellow / Green
Display Appearance
Black on Yellow / Green
Interface Type
Parallel
Display Mode
Transflective
LCD Display Type
STN
Operating Temperature Min
0°C
Display Construction
COB
Product Range
BTHQ21603V
