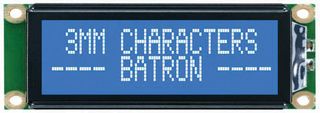

BTHQ21603V-SMN-LED WHITE WC
Alphanumeric LCD, 16 x 2, White on Blue, 5V, Parallel, English, Japanese, Transmissive
Pilt on illustreeriv. Lugege toote kirjeldust.
TootjaBATRON
Tootja toote nrBTHQ21603V-SMN-LED WHITE WC
Tellimiskood9448845
TootevalikBTHQ21603V
Tehniliste andmete leht
Ei toodeta enam
Tooteteave
TootjaBATRON
Tootja toote nrBTHQ21603V-SMN-LED WHITE WC
Tellimiskood9448845
TootevalikBTHQ21603V
Tehniliste andmete leht
Character Count x Line16 x 2
Display AppearanceWhite on Blue
Logic Voltage5V
Interface TypeParallel
Font SetEnglish, Japanese
Display ModeTransmissive
Character Size3.15mm
LCD Display TypeBSTN
Module Size53mm x 20mm
Operating Temperature Min0°C
Operating Temperature Max50°C
Display ConstructionCOB
Backlighting ColourWhite
Product RangeBTHQ21603V
Alternatiivid tootele BTHQ21603V-SMN-LED WHITE WC
Leiti 1 toodet
Toote ülevaade
The BTHQ21603V-SMN-LED WHITE WC is a 16-character (5 x 8 dots) x 2 lines STN negative blue transmissive dot matrix LCD Module with 6 O'clock direction viewing angle and 1/l6 Duty, l/5 bias driving scheme. 'NOVATEK' NT3881DH-01/AI (die form) LCD controller and driver or equivalent. 'SAMSUNG' KSOO6SB-PCC (die form) 40-channel segment/common driver for dot matrix LCD or equivalent. Connector CON-l6Xl-35, 16 pins x 1 row. 1mm pitch, SMD ("FULLCONN", P/N:TO3-2000-2160).
- White LEDOS backlight
Rakendused
Audio, Imaging, Video & Vision, Consumer Electronics
Tehnilised andmed
Character Count x Line
16 x 2
Logic Voltage
5V
Font Set
English, Japanese
Character Size
3.15mm
Module Size
53mm x 20mm
Operating Temperature Max
50°C
Backlighting Colour
White
Display Appearance
White on Blue
Interface Type
Parallel
Display Mode
Transmissive
LCD Display Type
BSTN
Operating Temperature Min
0°C
Display Construction
COB
Product Range
BTHQ21603V
Tehnilised dokumendid (1)
Seotud tooted
Leiti 3 toodet
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Taiwan
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Taiwan
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:85312095
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Vajab kinnitamist
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.01
