ABX00012

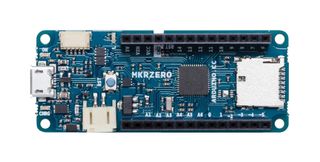

The Arduino MKR Zero brings you the power of the Arduino Zero in the smaller MKR form factor. It acts as an educational tool for learning about 32-bit application development. It has an onboard SD connector with dedicated SPI interfaces that allows you to play with files without the need for extra hardware.

• Microcontroller: SAMD21 Cortex-M0+
• Operating voltage: 3.3V
• Digital I/O pins: 22
• PWM pins: 12
• Analogue input pins: 7
• Analogue output pins: 1
• Flash memory: 256KB (8KB for bootloader)
• SRAM: 32KB
• Clock speed: 48MHz
• Supplied with mounted headers on the board

Hoiatused

Warning: The MKR Zero runs at 3.3V, and maximum voltage that the I/O pins can tolerate is 3.3V. Applying voltages higher than 3.3V to any I/O pin could damage the board.
