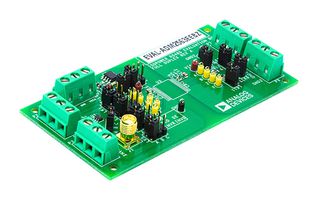

EVAL-ADM2563EEBZ

EVAL-ADM2563EEBZ is an evaluation board for the ADM2563E 3KV RMS, 500Kbps signal and power isolated RS-485 transceiver with ±15VK IEC ESD. The ADM2563E feature an integrated, isolated, dc-to-dc converter that provides power to the isolated side of the device with no additional ICs required.

• Simplified evaluation of the ADM2863E transceiver
• 2-layer PCB compliant to EN 55032/CISPR 32 Class B radiated emissions
• On-board ADP7104 LDO regulator with jumper for simplified evaluation in 5V or 3.3V configuration
• Flexible, low voltage VIO supply rail for interfacing with I/O nodes as low as 1.7V
• ESD protection on RS-485 A, B, Y and Z pins
• Optional on-board LTC6900 oscillator for providing TxD signal
• Screw terminal blocks for connecting power, digital signals and RS-485 signals
• Jumper selectable enable and disable for digital input signals
• Resistors and footprints for loopback test and termination
• Test points for measuring all signals
