EVAL-AD7173-8SDZ

EVAL-AD7173-8SDZ is an evaluation board to evaluate the AD7173-8 24bit, 31.25KSPS, Sigma-Delta ADC with 161μs settling and integrated analogue input buffers. Board features the AD7173-8, a 24bit, 31.25KSPS analogue to digital converter (ADC) with integrated analog input buffers, on-board power supply regulation and an external amplifier section for amplifier evaluation. A 7V to 9V ac-to-dc adapter is regulated to 5V and 3.3V, this supplies the AD7173-8 and support components. The EVAL-AD7173-8SDZ board connects to a USB port via the system demonstration platform (SDP) EVAL-SDP-CB1Z (SDP-B) controller board.

• Full featured evaluation board for the AD7173-8
• PC control in conjunction with the SDP
• PC software for control and data analysis (time domain)
• Standalone capability

Sisukord

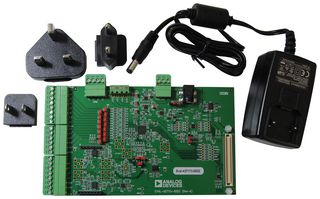

EVAL-AD7173-8SDZ evaluation board, AD717x Eval+ software CD, 7V to 9V AC-to-DC adapter.

Märkused

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
