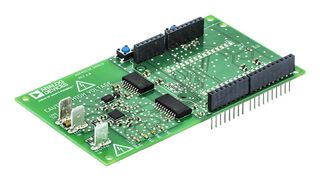

EV-ADE9153ASHIELDZ

EV-ADE9153ASHIELDZ is an ADE9153A Arduino shield evaluation board. The EV-ADE9153ASHIELDZ is an Arduino shield compatible with Arduino Uno, Arduino Zero, or ESP8266. The shield has an on-board shunt resistor for line current measurement and enables quick evaluation and prototyping of energy measurement systems that use the ADE9153A. Using mSure® autocalibration the shield can be calibrated to measure energy with 1% accuracy over the dynamic range without the need for expensive calibration equipment.

• Arduino-compatible, single-phase energy measurement shield with the ADE9153A
• On-board shunt for line current measurement, Nominal current: 5A and maximum current: 10A
• Up to 240VRMSnominal line neutral voltage measurement
• Arduino software library
• mSure autocalibration and example application sketches
