C016 20D003 100 10

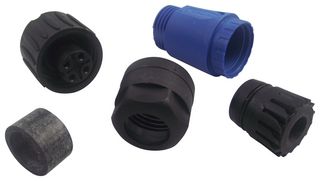

Circular Connector, Circular Industrial, Ecomate C016 Series, Cable Mount Receptacle, 4 Contacts
Pilt on illustreeriv. Lugege toote kirjeldust.
TootjaAMPHENOL SINE/TUCHEL
Tootja toote nrC016 20D003 100 10
Tellimiskood1188979
TootevalikEcomate C016 Series
Tehniliste andmete leht
761 Laos
1 000 Varusid saab nüüd reserveerida
Tarneaeg 1–2 tööpäeva
Tellige enne kella 17:00 tavaline saadetis
| Kogus | |
|---|---|
| 1+ | 17,540 € |
| 10+ | 16,930 € |
| 25+ | 16,490 € |
| 100+ | 15,970 € |
| 250+ | 15,650 € |
| 500+ | 15,330 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
17,54 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
TootjaAMPHENOL SINE/TUCHEL
Tootja toote nrC016 20D003 100 10
Tellimiskood1188979
TootevalikEcomate C016 Series
Tehniliste andmete leht
Connector TypeCircular Industrial
Product RangeEcomate C016 Series
Circular Connector Shell StyleCable Mount Receptacle
No. of Contacts4Contacts
Circular Contact TypeScrew Socket
Coupling StyleThreaded
Connector Body MaterialNylon (Polyamide) Body
Connector Body Plating-
Contact Material-
Contact PlatingSilver
Toote ülevaade
The C016 20D003 100 10 from Amphenol is an ecomate circular female cable connector with 3 + PE contacts. The ecomate series provide easy operation, reduced dimensions, robust design, quick and easy assembly. This connector’s main area of application is in the field of plant construction and machine building. It is used for measuring and controlling applications as well as for power supply technology. This ergonomically designed connectors are approved by UL E63093, CSA 48932, VDE 1781/1780, SEV 00.0394 standards and designed for safe handling.
- Silver plated contacts and screw termination
- Cable diameter from 6mm to 12.5mm
- Rated voltage of 400V according to DIN EN 60664-1/IEC 60664-1 standard
- Contact resistance is less than or equal to 5mohm according to DIN EN 60512-2/IEC 60512-2 (test 2a)
- Current carrying capacity of 16A at 55°C according to DIN EN 60512-3/IEC 60512-2 (test 5b)
- Operating temperature range from -40°C to 100°C
- IP67/IP65 degree of protection in accordance with DIN EN 60529/IEC 60529 standard
- Blue colour polyamide (PA6/PA6.6) housing
- Maximum wire gauge of 2.5mm²
- Strain relief with clamping ring
Rakendused
Industrial
Tehnilised andmed
Connector Type
Circular Industrial
Circular Connector Shell Style
Cable Mount Receptacle
Circular Contact Type
Screw Socket
Connector Body Material
Nylon (Polyamide) Body
Contact Material
-
Product Range
Ecomate C016 Series
No. of Contacts
4Contacts
Coupling Style
Threaded
Connector Body Plating
-
Contact Plating
Silver
Tehnilised dokumendid (3)
Seotud tooted
Leiti 2 toodet
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Czech Republic
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Czech Republic
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.041
