77138-101LF
Contact, FCI Minitek, Socket, Crimp, 26 AWG, Gold Plated Contacts

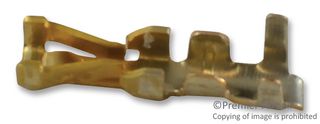

Pilt on illustreeriv. Lugege toote kirjeldust.
Ei ladustata enam
Tooteteave
Tootja toote nr77138-101LF
Tellimiskood2751580
TootevalikFCI Minitek
Tehniliste andmete leht
Product RangeFCI Minitek
Contact GenderSocket
Contact Termination TypeCrimp
Wire Size AWG Max26AWG
Contact PlatingGold Plated Contacts
For Use WithFCI Minitek Pwr Hybrid 3.0 Series Housing Connectors
Wire Size AWG Min30AWG
Contact MaterialPhosphor Bronze
SVHCNo SVHC (12-Jan-2017)
Alternatiivid tootele 77138-101LF
Leiti 1 toodet
Toote ülevaade
The 77138-101LF is a Crimp Contact made of phosphor bronze with gold plating. It accepts 30 to 26AWG wire. This crimp contact is suitable for use with 2mm Minitek system. Dual-beam contact design for highly reliable electrical performance. Latching key assures proper alignment and friction retention.
- 2A Continuous current rating
- 1000MΩ Minimum insulation resistance
- 20mΩ Maximum contact resistance
- 100-cycle Durability (mating)
- 650V Dielectric withstanding voltage
- -40 to +105°C Operating temperature range
Rakendused
Industrial
Tehnilised andmed
Product Range
FCI Minitek
Contact Termination Type
Crimp
Contact Plating
Gold Plated Contacts
Wire Size AWG Min
30AWG
SVHC
No SVHC (12-Jan-2017)
Contact Gender
Socket
Wire Size AWG Max
26AWG
For Use With
FCI Minitek Pwr Hybrid 3.0 Series Housing Connectors
Contact Material
Phosphor Bronze
Tehnilised dokumendid (3)
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:France
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:France
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:85369010
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Väga ohtlik aine:No SVHC (12-Jan-2017)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.000113
