JS5698
Self Adhering Surface Temperature Sensor, Wire Leaded, 45 mm x 45 mm Backing Size, 750 mm L

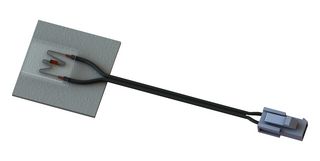

Pilt on illustreeriv. Lugege toote kirjeldust.
Tootja toote nrJS5698
Tellimiskood3875112
Tehniliste andmete leht
Saadaval tellimiseks
Tootja standardne tarneaeg: 6 nädal(at)
Teavitage mind, kui toode on uuesti laos
| Kogus | |
|---|---|
| 1+ | 4,650 € |
| 10+ | 4,000 € |
| 25+ | 3,780 € |
| 50+ | 3,550 € |
| 100+ | 3,350 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
4,65 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
Tootja toote nrJS5698
Tellimiskood3875112
Tehniliste andmete leht
Temperature Sensor TypeSurface Temperature Sensor
Measured Temperature Min-30°C
Measured Temperature Max70°C
Supply Voltage Min-
Supply Voltage Max-
Temperature Transmitter Output Type-
Thermistor TerminalsWire Leaded
Temperature Transmitter Output-
Loop PoweredNo
Sensor MountingAdhesive
Operating Temperature Min-
Operating Temperature Max-
Product Range-
SVHCNo SVHC (07-Jul-2017)
Toote ülevaade
JS5698 is a self-adhering surface temperature sensor designed for industrial HVACR applications, typically for placement on the external wall of a water tank or boiler reservoirs. It is also suitable for reservoir tanks working in conjunction with solar panel water heating systems. This range of adhesive pad sensor detect over-temperature resulting from a malfunction or a dry-fire. An adhesive lined foam backing tape provides air and moisture resistance with optional WRC (5470) water safety and DIN 4102 part 1 (B3) fire safety approvals.
- 45x45, square
- Foam backing tapes
- Excellent heat transfer
- Long-term stability
- Temperature ranges from -30 to +70°C
- PVC single insulated lead wire, 3x1.5mm cross-sectional profile
- Voltage withstand 750VAC between the terminals of the connector and the contact tape
- Maximum permissible current is 1mA
- 750mm length
- Molex 5559 connector
Tehnilised andmed
Temperature Sensor Type
Surface Temperature Sensor
Measured Temperature Max
70°C
Supply Voltage Max
-
Thermistor Terminals
Wire Leaded
Loop Powered
No
Operating Temperature Min
-
Product Range
-
Measured Temperature Min
-30°C
Supply Voltage Min
-
Temperature Transmitter Output Type
-
Temperature Transmitter Output
-
Sensor Mounting
Adhesive
Operating Temperature Max
-
SVHC
No SVHC (07-Jul-2017)
Tehnilised dokumendid (2)
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:China
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:China
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:85334090
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Väga ohtlik aine:No SVHC (07-Jul-2017)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.002165
