JI-103C1R2-L301
NTC Thermistor, 10 kohm, Through Hole, Wire Leaded, 3977 K, JI Series

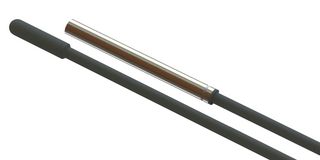

Pilt on illustreeriv. Lugege toote kirjeldust.
Tootja toote nrJI-103C1R2-L301
Tellimiskood3783305
TootevalikThermometrics Type JI & JIC Series
Tehniliste andmete leht
Saadaval tellimiseks
Tootja standardne tarneaeg: 16 nädal(at)
Teavitage mind, kui toode on uuesti laos
| Kogus | |
|---|---|
| 1+ | 10,220 € |
| 5+ | 8,660 € |
| 10+ | 8,320 € |
| 20+ | 7,920 € |
| 40+ | 7,650 € |
| 100+ | 7,390 € |
Hind:Each
Minimaalne: 1
Mitmekordne: 1
10,22 € (KM-ta)
Lisage tootenr/ /tootemärkus
Lisatud teie tellimuse kinnitusele, arvele ja väljastusteatele ainult sellel tellimusel.
See arv lisatakse tellimuse kinnitusele, arvele, väljastusteatele, veebipõhisele kinnitusmeilile ja tootesildile.
Tooteteave
Tootja toote nrJI-103C1R2-L301
Tellimiskood3783305
TootevalikThermometrics Type JI & JIC Series
Tehniliste andmete leht
Thermistor TypeProbe
Resistance (25°C)10kohm
Resistance Tolerance (25°C)± 2%
Product RangeThermometrics Type JI & JIC Series
NTC MountingFree Hanging
Thermistor TerminalsWire Leaded
B-Constant3977K
B-Constant Tolerance-
NTC Case Size-
Thermal Time Constant (in Air)-
Probe Material-
Probe Diameter5mm
Lead Length280mm
Operating Temperature Min-50°C
Operating Temperature Max105°C
Qualification-
SVHCNo SVHC (07-Jul-2017)
Toote ülevaade
JI-103C1R2-L301 is a JI series waterproof IP68 temperature sensor moulded onto a flexible circular cable. The tip and outer cable insulation material is thermoplastic elastomer rubber. The tinned copper conductors have individual polypropylene insulation. Typical applications include ventilation, refrigeration, heat pumps, water heaters, weather stations, outdoor temperature measurement, under-floor heating, fish tanks and evaporators.
- Waterproof to IP68
- Withstands freeze/thaw cycling
- Sensor tip and extension cable moulded together as one hot vulcanised unit
- 3750V AC dielectric strength
- Insulation resistanceof <gt/>100Mohm at 1000VDC
- Cable type is 2 x 0.300mm² (23AWG)
- Wire conductors is 7 x 0.23mm diameter (0.30mm²)
Tehnilised andmed
Thermistor Type
Probe
Resistance Tolerance (25°C)
± 2%
NTC Mounting
Free Hanging
B-Constant
3977K
NTC Case Size
-
Probe Material
-
Lead Length
280mm
Operating Temperature Max
105°C
SVHC
No SVHC (07-Jul-2017)
Resistance (25°C)
10kohm
Product Range
Thermometrics Type JI & JIC Series
Thermistor Terminals
Wire Leaded
B-Constant Tolerance
-
Thermal Time Constant (in Air)
-
Probe Diameter
5mm
Operating Temperature Min
-50°C
Qualification
-
Tehnilised dokumendid (2)
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Italy
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Italy
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:85334090
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Väga ohtlik aine:No SVHC (07-Jul-2017)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.004685
