SPUN191400

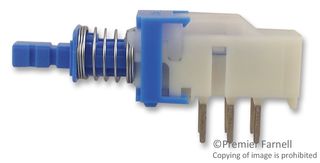

Pushbutton Switch, SPUN, DPDT, Off-On, Square
Pilt on illustreeriv. Lugege toote kirjeldust.
Ei toodeta enam
Tooteteave
TootjaALPS ALPINE
Tootja toote nrSPUN191400
Tellimiskood1123855
TootevalikSPUN
Tehniliste andmete leht
Product RangeSPUN
Pushbutton Switch TypeStandard
Contact Voltage DC Nom30V
Contact Current Max100mA
Contact Current DC Max100mA
Contact Voltage VDC30V
Toote ülevaade
The SPUN series from Alps are push button switches available in SMD and snap-in terminals. These are 2.5mm travel, large horizontal type switches suitable for multiple circuits. Typical applications include FP-TV and DVD players.
- 2 pole configuration
- Maximum rating of 0.1A at 30VDC for standard and 1A at 25VDC for medium current switches
- Initial contact resistance of 20mohm maximum
- Latching
- Operating force of 2N
- PC board mounting
- Non shorting change over timing
Rakendused
Industrial, Power Management, Automation & Process Control, Consumer Electronics, Audio
Tehnilised andmed
Product Range
SPUN
Contact Voltage DC Nom
30V
Contact Current DC Max
100mA
Pushbutton Switch Type
Standard
Contact Current Max
100mA
Contact Voltage VDC
30V
Tehnilised dokumendid (1)
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Japan
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:Japan
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:85365019
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Vajab kinnitamist
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.002908
