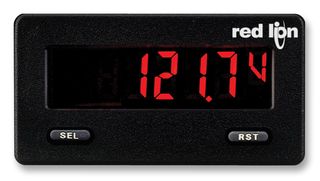

CUB5VB00

The CUB5VB00 is a 5-digit CUB®5 DC Volt Meter offers transmissive LCD with selectable red/green LED backlight, viewing angle optimized. Display colour change capability with output state when using an output module. It provides the user the ultimate in flexibility, from its complete user programming to the optional set-point control and communication capability. The CUB5V accepts a DC Voltage input signal and provides a display in the desired unit of measure. The meter also features minimum and maximum display capture, display offset, units indicator and programmable user input. The display can be toggled either manually or automatically between the selected displays. The backlight version is user selectable for the desired colour and also has variable display intensity. The capability of the CUB5 can be easily expanded with the addition of option cards. Serial communications capability for RS232 or RS485 is added with a serial option card.

• Minimum and maximum display capture
• Front panel or crimson programmable
• Display colour change capability at set-point output
• IP65/NEMA-4X Protection rating

Rakendused

Industrial, Clock & Timing, Metering

Hoiatused

Do not use this meter to directly command motors, valves or other actuators not equipped with safeguards. To do so can be potentially harmful to persons/equipment in the event of fault to the meter.
