PSG03502

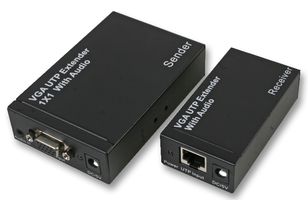

This VGA UTP extender 1x1 splitter with audio is an ideal device for local displaying and remote viewing. It combines split function and extension function. It distributes the input of the VGA signal and audio signal in the local and remote outputs simultaneosly.

• Send VGA & Audio signals over standard UTP Cat5e/Cat6 cable
• Features a VGA loop out at the sender end which lets you view your output on any existing monitor
• 1920x1200 Maximum Resolution
• Up to 300m range (Using Cat5e/6 UTP Cable)
• Adjustable Gain (Brightness) & Peak (Skew) to adapt for different length of UTP cables
• Simple plug & play
• Sender:
• Input: VGA Socket & 3.5mm stereo jack socket
• Output: VGA Socket, 3.5mm stereo jack socket & RJ45 socket
• Dimensions (WxHxD): 100x25x65mm
• Receiver:
• Input: RJ45 Socket
• Output: VGA Socket & 3.5mm stereo jack socket
• Dimensions (WxHxD): 80x23x43mm

Sisukord

Sender, receiver, 2x power adaptors & mounting brackets
