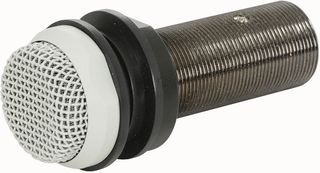

CBM20
Ceiling Boundary Microphone, Omnidirectional
Pilt on illustreeriv. Lugege toote kirjeldust.
Ei ladustata enam
Tooteteave
TootjaADASTRA
Tootja toote nrCBM20
Tellimiskood3401695
Teise nimegaGTIN UPC EAN: 05015972185339
DirectivityOmnidirectional
Output Impedance200ohm
Frequency Response Min50Hz
Frequency Response Max17kHz
Sensitivity-39dB ±3dB
Connector Type3 Way XLR
Lead Length-
Product Range-
SVHCNo SVHC (25-Jun-2020)
Toote ülevaade
This low profile ceiling or panel mounted boundary microphone has an omnidirectional pick-up pattern which is suitable for use where discreet audio surveillance is required. Applications range from audio pick-up in induction loop systems to audio monitoring and recording for CCTV systems.
- Small visible profile
- Phantom powered
- Balanced XLR output
- Omnidirectional pickup pattern
- Frequency response: 50Hz-17kHz
- Max. Input SPL: 140dB (@ 1kHz)
- Sensitivity: -39dB ±3dB
- Impedance: 200 Ohms ±30% (@ 1kHz)
- Power supply: 9-52V DC phantom power
- Cut-out diameter: 20mm
- Panel mounting depth: up to 50mm
- Overall dimensions (LxDia): 70x31mm
- Weight: 70g
Tehnilised andmed
Directivity
Omnidirectional
Frequency Response Min
50Hz
Sensitivity
-39dB ±3dB
Lead Length
-
SVHC
No SVHC (25-Jun-2020)
Output Impedance
200ohm
Frequency Response Max
17kHz
Connector Type
3 Way XLR
Product Range
-
Seadusandlus ja keskkonnateave
Päritoluriik:
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:China
Riik, kus toimus viimane oluline tootmisprotsess
Riik, kus toimus viimane oluline tootmisprotsessPäritoluriik:China
Riik, kus toimus viimane oluline tootmisprotsess
Tariifi nr:85181000
US ECCN:EAR99
EU ECCN:NLR
RoHS-ile vastav:Jah
RoHS
Vastab RoHS-i ftalaatide nõuetele:Jah
RoHS
Väga ohtlik aine:No SVHC (25-Jun-2020)
Laadige alla vastavussertifikaat
Toote vastavussertifikaat
Kaal (kg):.112
