MICROCHIP  UK003010  PICStart PLUS, Flash Upgrade Module, PUM unit, Support For a specific Devices in the MPLAB® IDE

MICROCHIP UK003010
Technical Data Sheet (674.41KB) EN Vaadake kõiki tehnilisi dokumente

Pilt on illustreeriv. Lugege toote kirjeldust.

Toote ülevaade

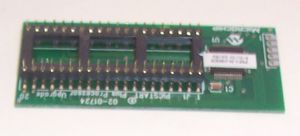

UK003010 is a PICSTART Plus Flash, reprogrammable firmware upgrade. This PICSTART Plus Flash Upgrade Module (PUM) is a PCB that contains a PIC18F6720 device that has been programmed with the firmware needed to provide support for a specific set of devices in the MPLAB IDE. The PUM is used to replace the PIC17C44 inside of the PICSTART Plus, the device that contains the firmware that can provide support to a maximum firmware version 3.11 in the MPLAB IDE. Because the PUM uses Flash technology, its firmware can be upgraded as needed to gain support for new devices by using an option in the MPLAB IDE.
  • C compiler friendly development environment
  • 1024 bytes of EEPROM
  • An in-circuit debugger
  • Self programming
  • Synchronous serial port configured as either 3 wire SPI or 2 wire I2C bus
  • Two addressable universal asynchronous receiver transmitter
PICSTART Plus units with hardware revision of R20 or later already have the feature and do not require this kit.

Tooteteave

Supported Families:
PIC18F
Kit Contents:
PUM unit
Features:
Adds support for a specific set of devices in the MPLAB® IDE, flash based,
Product Range:
-
SVHC:
No SVHC (17-Dec-2015)

Leia sarnaseid tooteid  rühmitatuna ühise atribuudi järgi

Rakendused

  • Communications & Networking;
  • Sensing & Instrumentation;
  • System Monitoring;
  • Consumer Electronics;
  • Audio

Märkused

PICSTART Plus units with hardware revision of R20 or later already have the feature and do not require this kit.

Seadusandlus ja keskkonnateave

Päritoluriik:
United States

Riik, kus toimus viimane oluline tootmisprotsess

Tariifi nr:
85423990
Kaal (kg):
.12
