The NEW TBS1000C oscilloscope series
Designed to meet the need of today's teachers and embedded design engineers. Introductory offer – NOW up to 20% off (TBS1052C excluded).
While stock lasts.
The TBS1000C Series Digital Storage Oscilloscope offers affordable performance in a compact design.
It is designed to meet the needs of today's educational institutions, embedded design engineers, and maker community.
The instrument includes a 7-inch WVGA colour display with up to 1 GS/s sample rate, bandwidths from 50 MHz to 200 MHz and a five year warranty. The instrument comes with an innovative courseware system that integrates the lab exercises with step-by-step instructions for use, by the students. HelpEverywhere® system provides useful tips and hints throughout the user interface, to make the instrument more approachable to a new user.
MODELS AND KEY FEATURES
| TBS-1052C | TBS-1072C | TBS-1102C | TBS-1202C | |
|---|---|---|---|---|
| Bandwidth | 50 MHz | 70 MHz | 100 MHz | 200 MHz |
| Analog Channels | 2 | |||
| Sample Rate | 1GS/s (All) | |||
| Record Length | 20k points | |||
| Vertical Resolution | 8 Bit, 1mV/div to 10V/div | |||
| Probe Interface | Passive BNC probes, Current and Power probes | |||
| Trigger | Edge, Pulse Width, Runt | |||
| Analysis | 32 Automated Measurements, Math, Ref, Cursors, FFT, Zoom, Autoset | |||
| Display Size | 7 in WVGA | |||
| I/O | USB Host, USB Device, Aux In | |||
| Security | Kensington Lock | |||
| Software | Courseware, TekSmartLab, OpenChoice, TekBench | |||
| Warranty | 5 Years | |||
| Education | In-build courseware now standard. More control over automated functions. | |||
| UPDATED FEATURES vs. TBS1000B | ||||
| Vertical Set-up | More options including position/offset, User Labels | |||
| FFT | Blackman Harris added, vertical units (Log, Linear), User Label, Cursor Support with on screen readouts | |||
| Acquire | Record Length control, delay, persistence, XY display | |||
| Trigger | New Runt Trigger. No Video Trigger | |||
| Cursor | New Screen Cursor, Cursor Linking, on Screen readouts, position in defender view when they are off screen and shortcut to bring them on screen | |||
| Measurement | Redesigned UI for all measurements on same screen for easy selection, more gating options, screen, cursors and full record, ref level selection | |||
| Function | Always on trigger frequency counter | |||
Finding the right probe for your oscilloscope. Check out our Tektronix Probe Selector.
Lepingujärgse hinna kuvamine pole hetkel võimalik. Kuvatud hinnad on standardsed jaehinnad, esitatud tellimustes rakendatakse menetlemisel lepingujärgseid hindu.
| Tootja tootenr | Tellimiskood | Tootja / kirjeldus | Saadavalolek | Hind tootele | Hind | Kogus | |
|---|---|---|---|---|---|---|---|

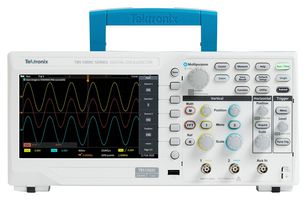

TBS1052C
|
3463443 |
Digital Oscilloscope, TBS1052C + FREE 1YR TEKSCOPE & TEKDRIVE, TBS1000C, 2 Channel, 50 MHz, 1 GSPS TEKTRONIX DSO, 2-CH, 50MHZ, 1GSPS;
Ostsite varem selle toote.
Vaadake tellimuste ajalugu
|
1 laos järgmisel päeval kohaletoimetamiseks (ladu: Liege) 164 laos järgmisel päeval kohaletoimetamiseks (ladu: UK)
Suurem laovaru on saadaval nädalal, mis algab kuupäevaga 16.10.23 |
Tükitoode
|
1+ 505,00 € |
Piiranguga toode
Minimaalne tellimus 1 tk Ainult 1 kordne Sisestage kehtiv kogus Min: 1
Mult:
1
|
|
|
TBS1202C
|
3463446 |
Digital Oscilloscope, TBS1202C + FREE 1YR TEKSCOPE & TEKDRIVE, TBS1000C, 2 Channel, 200 MHz, 1 GSPS TEKTRONIX DSO, 2-CH, 200MHZ, 1GSPS;
Ostsite varem selle toote.
Vaadake tellimuste ajalugu
|
2 Laos + Kontrolli laoseisu ja tarneaegu 2 laos järgmisel päeval kohaletoimetamiseks (ladu: UK)
Suurem laovaru on saadaval nädalal, mis algab kuupäevaga 25.09.23 |
Tükitoode
|
1+ 1 790,00 € |
Piiranguga toode
Minimaalne tellimus 1 tk Ainult 1 kordne Sisestage kehtiv kogus Min: 1
Mult:
1
|
|
|
TBS1102C
|
3463445 |
Digital Oscilloscope, TBS1102C + FREE 1YR TEKSCOPE & TEKDRIVE, TBS1000C, 2 Channel, 100 MHz, 1 GSPS TEKTRONIX DSO, 2-CH, 100MHZ, 1GSPS;
Ostsite varem selle toote.
Vaadake tellimuste ajalugu
|
Saadaval reservtellimisega + Kontrolli laoseisu ja tarneaeguSuurem laovaru on saadaval nädalal, mis algab kuupäevaga 16.10.23 Võtke minuga ühendust, kui toode on laos |
Tükitoode
|
1+ 1 110,00 € |
Piiranguga toode
Minimaalne tellimus 1 tk Ainult 1 kordne Sisestage kehtiv kogus Min: 1
Mult:
1
|
|
|
TBS1072C
|
3463444 |
Digital Oscilloscope, TBS1000C + FREE 1YR TEKSCOPE & TEKDRIVE, TBS1000C, 2 Channel, 70 MHz, 1 GSPS TEKTRONIX DSO, 2-CH, 70MHZ, 1GSPS;
Ostsite varem selle toote.
Vaadake tellimuste ajalugu
|
31 Laos + Kontrolli laoseisu ja tarneaegu 31 laos järgmisel päeval kohaletoimetamiseks (ladu: UK)
Suurem laovaru on saadaval nädalal, mis algab kuupäevaga 3.07.23 |
Tükitoode
|
1+ 816,00 € |
Piiranguga toode
Minimaalne tellimus 1 tk Ainult 1 kordne Sisestage kehtiv kogus Min: 1
Mult:
1
|
