CAT-HT-179-2030-13

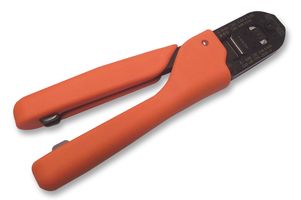

The CAT-HT-179-2030-13 is a straight action Hand Tool for use with CC79 series contacts. It features fixed die (crimper), movable die (anvil), locator and ratchet. The locator positions the contact and limits the insertion distance of the stripped wire into the contact. The ratchet assures full crimping of the contact. Once engaged, the ratchet will not release until the dies have been fully closed.

Rakendused

Maintenance & Repair

Hoiatused

Do not cut or nick the wire strands during wire stripping. Damaged contacts should not be used. If a damaged contact is evident, it should be cut from the wire and replaced with a new one.
