VAN DAMME  268308C  Coaxial Cable, Plasma Grade, Green, 24 AWG, 0.2 mm², 7 x 0.2mm, 328 ft, 100 m

VAN DAMME 268308C
Tootja toote nr:
268308C
Tellimiskood:
1891073
Tehniliste andmete leht:
Vaadake kõiki tehnilisi dokumente

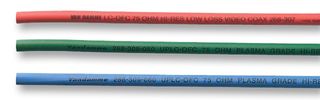

Pilt on illustreeriv. Lugege toote kirjeldust.

Toote ülevaade

The 268308C is a standard plasma grade video Coaxial Cable with bare ultra pure oxygen-free copper conductor and a polyethylene dielectric. This RG59 high-resolution coaxial cable comes with a green flexible PVC jacket and bare oxygen-free braided copper wire screen (95% coverage). It is designed for use with analogue video signals. Precision performance is combined with flexibility usually only found in microphone cables resulting in an excellent video cable for dynamic use in the broadcast, video and presentation markets. It can be used with serial digital video transmissions up to 138m. It is also suitable for SP Dif digital audio and word clock.
  • 85R/km Conductor resistance
  • 13R/km Shield resistance
  • >5000MR/km Insulation resistance
  • 7000VDC (1 minute OK) Voltage test
  • 67pF/m Capacitance
  • 66% Velocity of propagation

Tooteteave

Jacket Colour:
Green
Wire Gauge:
24AWG
Conductor Area CSA:
0.2mm²
No. of Max Strands x Strand Size:
7 x 0.2mm
Reel Length (Imperial):
328ft
Reel Length (Metric):
100m
Jacket Material:
Neoprene, PVC
Conductor Material:
Copper
External Diameter:
6.1mm
Coaxial Cable Type:
RG59
Impedance:
75ohm
Product Range:
-
SVHC:
No SVHC (15-Jun-2015)

Leia sarnaseid tooteid  rühmitatuna ühise atribuudi järgi

Rakendused

  • Signal Processing
  • Audio

Seadusandlus ja keskkonnateave

Päritoluriik:
Italy

Riik, kus toimus viimane oluline tootmisprotsess

RoHS-ile vastav:
Jah
Tariifi nr:
85442000
Kaal (kg):
5
