SAMTEC  TSW-209-09-F-D-RA  Board-To-Board Connector, Right Angle, TSW Series, 18 Contacts, Header, 5.08 mm, Through Hole

SAMTEC TSW-209-09-F-D-RA
SAMTEC TSW-209-09-F-D-RA
Technical Data Sheet (834.47KB) EN Vaadake kõiki tehnilisi dokumente

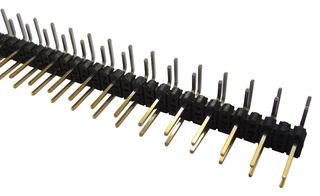

Pilt on illustreeriv. Lugege toote kirjeldust.

SAMTEC TSW-209-09-F-D-RA
SAMTEC TSW-209-09-F-D-RA

Toote ülevaade

The TSW series from Samtec are standard terminal strip headers. These are unshrouded through hole headers with 0.025" (0.635mm) square post and mates with Samtec SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD and SMSS series of connectors. TSW series connectors are available with industry's largest variety of standard pin counts, terminal lengths and are used where signal integrity and reliability is of major concern.
  • Orderable with single/dual/triple rows (-S/-D/-T/-Q option)
  • Pitch spacing of 5.08mm (2 to 25 contacts per row) with right angle orientation
  • High operating temperature range of -55°C to 125°C for 3µ"gold flash plated contacts
  • Terminal material is phosphor bronze
  • Black glass filled polyester insulator material
  • Complies with UL E111594 and CSA 090871_0_000 standards
  • Locking lead and locking clip feature is optional

Tooteteave

Product Range:
TSW Series
No. of Contacts:
18Contacts
Gender:
Header
Pitch Spacing:
5.08mm
Contact Termination Type:
Through Hole
No. of Rows:
2Rows
Contact Plating:
Gold Plated Contacts
Contact Material:
Phosphor Bronze
SVHC:
No SVHC (15-Jun-2015)

Leia sarnaseid tooteid  rühmitatuna ühise atribuudi järgi

Rakendused

  • Industrial

Seadusandlus ja keskkonnateave

Päritoluriik:
United States

Riik, kus toimus viimane oluline tootmisprotsess

RoHS-ile vastav:
Jah
Tariifi nr:
85366930
Kaal (kg):
.01
