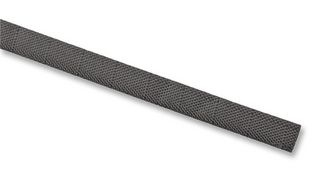

LEADER TECH-FERRISHIELD  SG060125R-24  Gasket, EMI Shielding, Rectangular, Nickel Plated Copper, 610 mm x 3.2 mm x 1.2 mm, 100 dB

LEADER TECH-FERRISHIELD SG060125R-24
Technical Data Sheet (577.32KB) EN Vaadake kõiki tehnilisi dokumente

Pilt on illustreeriv. Lugege toote kirjeldust.

Toote ülevaade

The SG060125R-24 is an EMI rectangular Shielding Gasket made of nickel-plated copper. The shielding gaskets are connectors of two opposing metallic planes which make this gasket to appear as one continuous surface, by connecting across the openings. Depending on the frequencies involved, the openings must be reduced as closely as possible to a continuous seal. The non-conductive high peel strength unique fabric shielding gasket structure is a combination of a highly conductive nickel/copper ripstop fabric and a resilient polyurethane foam core. This FSG gasket has superior shielding properties and ensures long performance life all in a cost effective manner.
  • <=0.050R/inch² Surface resistivity
  • UL94V-0 Flammability rating
  • Up to >105dB (MIL-DTL-83528C) Shielding effectiveness
  • Open cell polyurethane foam
  • Non-conductive
  • High peel strength

Tooteteave

Shielding Type:
EMI Shielding
Product Range:
SG Series
Gasket Material:
Nickel Plated Copper
Length:
610mm
Width:
3.2mm
Depth:
1.2mm
Attenuation:
100dB

Leia sarnaseid tooteid  rühmitatuna ühise atribuudi järgi

Rakendused

  • Industrial

Seadusandlus ja keskkonnateave

Päritoluriik:
United States

Riik, kus toimus viimane oluline tootmisprotsess

RoHS-ile vastav:
Jah
Tariifi nr:
74199990
Kaal (kg):
.017588
