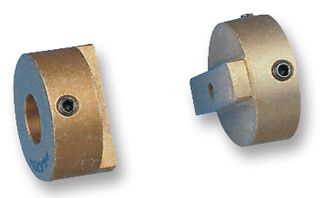

HUCO  232P13.20.F  Coupling, Oldham, Blind, Set Screw Fixing Hubs, Size 13, M3, 6.35mm

HUCO 232P13.20.F
Technical Data Sheet (109.48KB) EN Vaadake kõiki tehnilisi dokumente

Pilt on illustreeriv. Lugege toote kirjeldust.

Toote ülevaade

The 232P13.20.F is a Coupling Oldham Hub rated for intermittent operation. It has zero backlash, high torsional stiffness and offers easy connection of drives in blind or difficult installations. It is widely used for motion control, typically in positioning tables, fluid delivery, optical systems and similar applications. The Huco Oldham coupler consists of two hubs + one torque disc. The hubs determine the method of installation and shaft attachment, the discs determine the quality of motion.
  • Backlash-free
  • Flex-free mechanical action - Low bearing loads
  • High radial misalignment capability
  • Torsionally stiff with alternative shock absorbing wear element
  • Electrically isolating
  • Low inertia
  • 3000rpm Maximum speed

Tooteteave

Overall Length:
15.9mm
Coupling Material:
-
Coupling Body Size:
12.7
Bore Size:
5mm
Torque:
0.8N-m
External Diameter:
12.7mm
Product Range:
Blind Hub Series
Thread Type:
Metric
Rotational Speed Max:
-
Body Material:
Aluminium
Length:
15.9 mm
Bore Diameter Nom:
5 mm
SVHC:
No SVHC (17-Dec-2015)

Leia sarnaseid tooteid  rühmitatuna ühise atribuudi järgi

Rakendused

  • Industrial

Seadusandlus ja keskkonnateave

Päritoluriik:
Great Britain

Riik, kus toimus viimane oluline tootmisprotsess

Tariifi nr:
84836080
Kaal (kg):
.04
